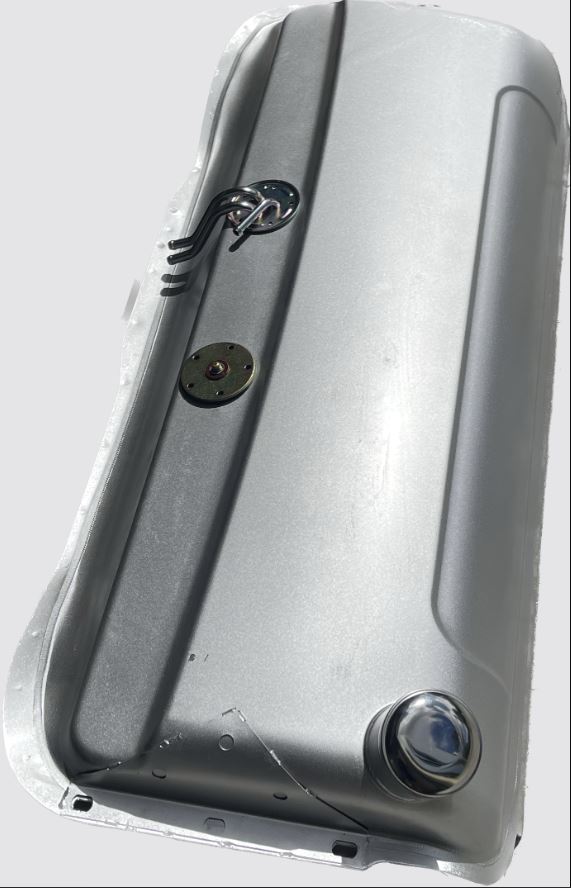

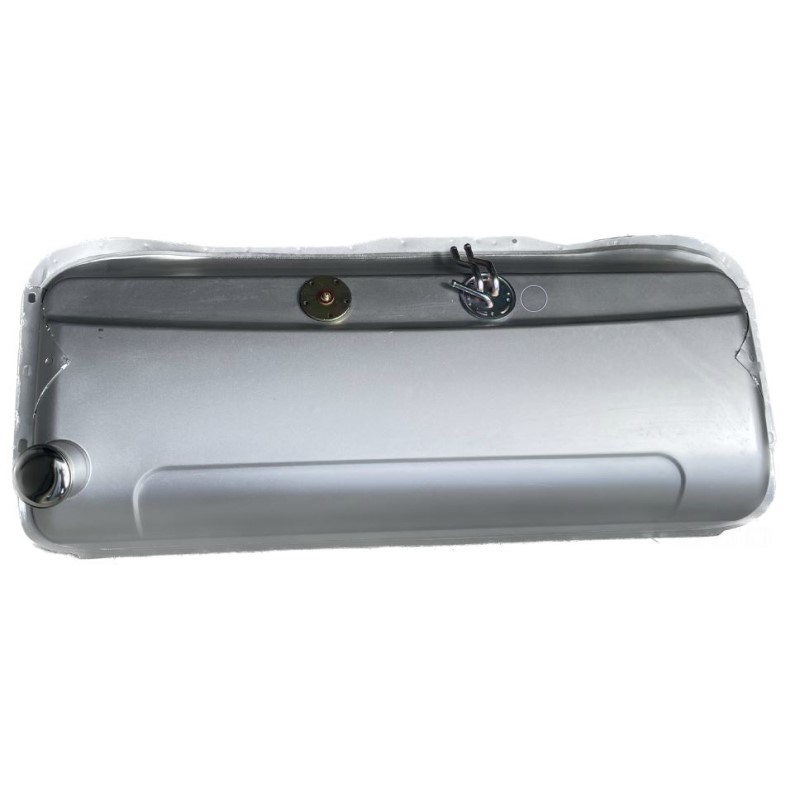

1932 Ford Steel Fuel Tank, Incl. Pickup & Cap

ARC Performance 1932 Ford Steel Fuel Tank.

Tank is supplied with:
– Stainless Fuel Cap
– Pick up assembly
– Fuel sender unit with Ohm range of 240 empty and 33 full
– Fuel drain bung

Our steel fuel tanks also accept aftermarket sending units and are an easy bolt-in installation.

This tank comes with pick up assembly with three lines (one outlet, one return & one vent line).

Bolt-in pickup assembly has three outlets:

• one for pickup
• one for return
• one for vent

Tank:

• Tank is approximately 38-3/4″ wide including perimeter flange
• Overall length front to rear at the widest point is 15-3/4″, including an extended flange area on about a third of the front edge for an additional 3/4″
• Majority of tank depth front to rear is 15″
• Overall height is approximately 9″
• Filler neck is welded in at the stock location

Perimeter Flange:

• The perimeter flange is designed to lay on top of the rails and has two mounting holes on the driver’s side that are approximately 7-3/8″ center to center and in from the edge about 1/2″
• There is additional hole marked, but not punched, between these holes
• On the passenger side, there is one mounting hole and two marked holes at the same 7-3/8″ spacing as the driver’s side
• The rear flange drops straight downward about 1-1/4″
• The extended front flange has two 3/8″ attachment holes pre-punched
• Remainder of perimeter flange is approximately 1″ wide and the mounting holes are in 1/2″ from the sides

ITEM IS EXCLUDED FROM FREE SHIPPING DUE TO SIZE – BULKY ITEM.
