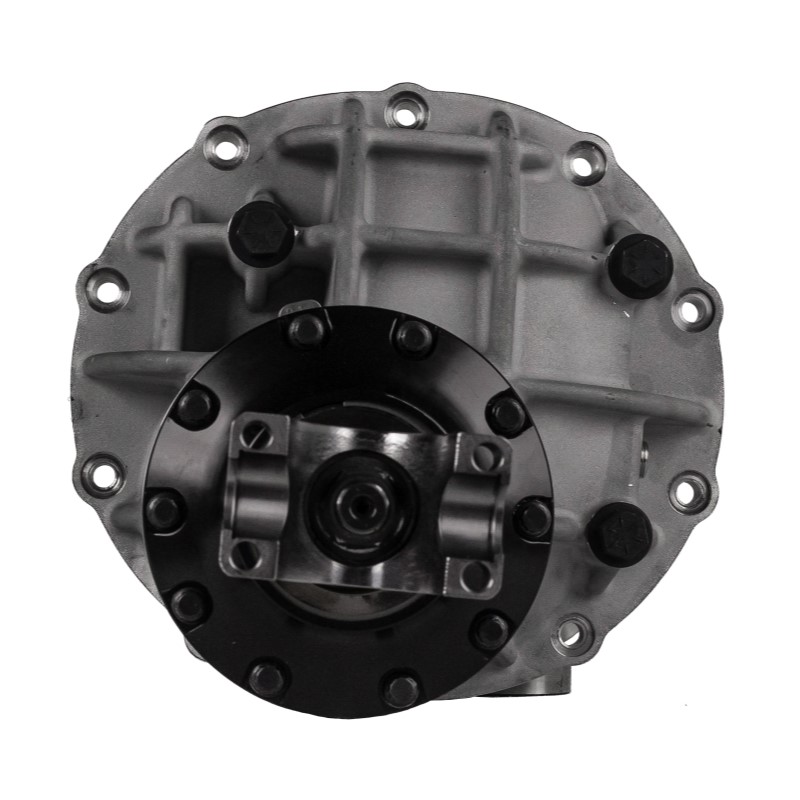

9 Inch True Trac LSD Aluminium Case Diff Centre, 28 Or 31 Spline, 1350 Yoke

Aluminium 9 Inch Diff Centre
LSD True Trac Differential

These diff centres are manufactured starting with a standard length strong aluminium case with through bolt design centre section for added strength along with billet one piece bearing caps for improved durability. Then the installed 10 x 3/8 inch bolt pinion support gives extra tensile strength to the unit.

To finish off, the True Trac style differential will efficiently put that power to the ground.

Available in 3.00 3.25:1, 3.5:1, 3.7:1, 3.89:1 & 4.11 ratios (PENDING STOCK)

• 28 or 31 spline True Trac LSD differential
• 6 Pinion Trutrac Style gear driven LSD – No clutches
• Richmond gearsets
• Quiet and progressive torque application through Torsen style lockup
• Heavy Duty Billet Daytona style 10 x 3/8-16 bolt large pinion support
• Solid spacer – no crush sleeve
• Standard length case
• Aluminium casing with through-bolt main cap design
• Machined billet 1350 yoke

Professionally assembled with gear sets lapped to allow for correct tooth contact and smoothness

Shipped in a strong plastic tote box.

2 WEEK BUILD TIME

A COMMERICAL/BUSINESS ADDRESS IS REQUIRED FOR DELIVERY DUE TO WEIGHT OF ITEM
IF BUSINESS ADDRESS IS AVAILABLE – LEAVE ADDRESS IN CHECKOUT

1 DAY NOTICE REQUIRED FOR INSTORE PICKUP

DIFF CENTRES WILL BE SHIPPED TO THE NEAREST DEPOT – TRACKING INFORMATION IS PROVIDED

Please Note: These diff centres are to be used with a Premium mineral based oil with range of EP140 Extreme pressure at a minimum, no split grades such as 85/140. Failure of customer to use correct oil can result in gear damage, noise and may void your warranty. The correct ‘Run In’ period is also very important for a new diff centre, please read supplied information carefully before install.
