Ford 9 Inch Disc Brake Kit w/ Drilled & Slotted Rotors, E-Brake Caliper.
Looking for an affordable quality rear disc brake upgrade? ARC Performance has the solution!
ARC Performance disc brake kit is designed to suit 8 inch & 9 inch housings with 3/8 inch retaining bolts.
Fits “old” and “new” style big bearing (3.150″ bearing O.D.) Ford housings and with axle offsets of a minimum 2-3/8 inch to 2-1/2 inch.

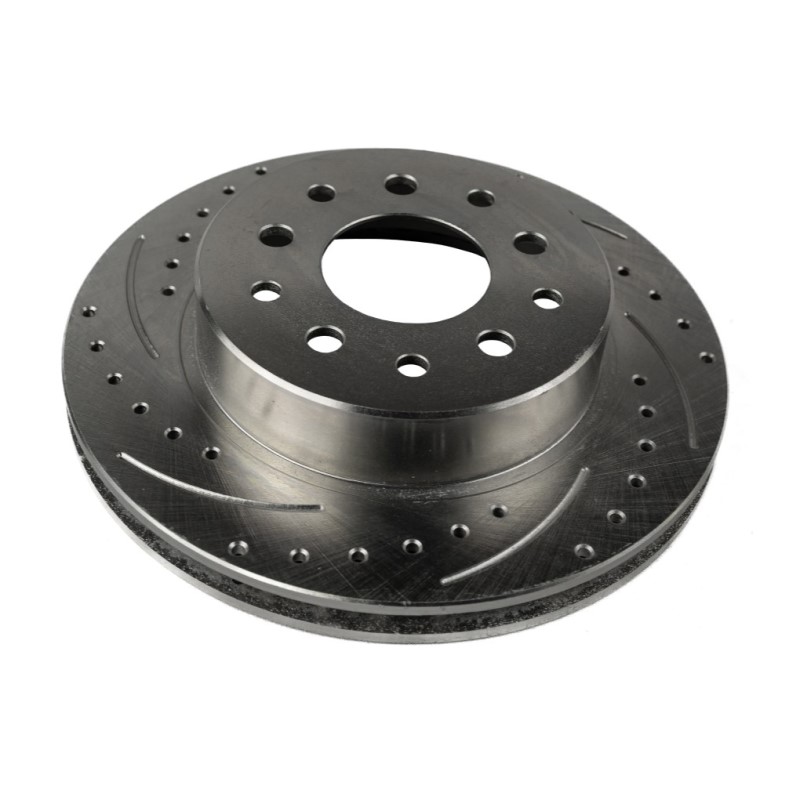

- 11.25 inch drilled and slotted rotors
- 78-88 GM Emergency brake calipers including brake pads

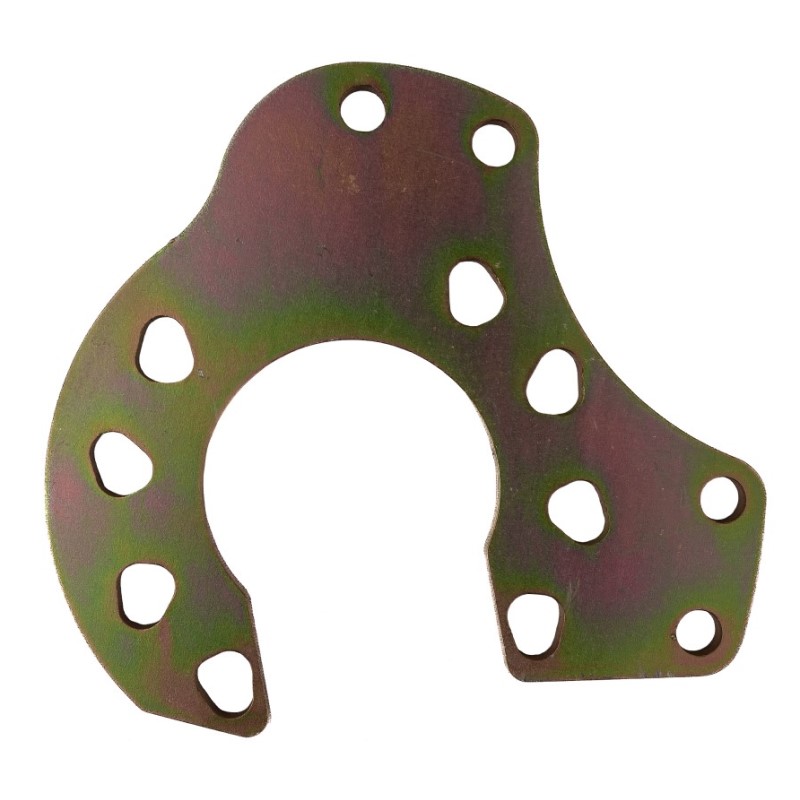

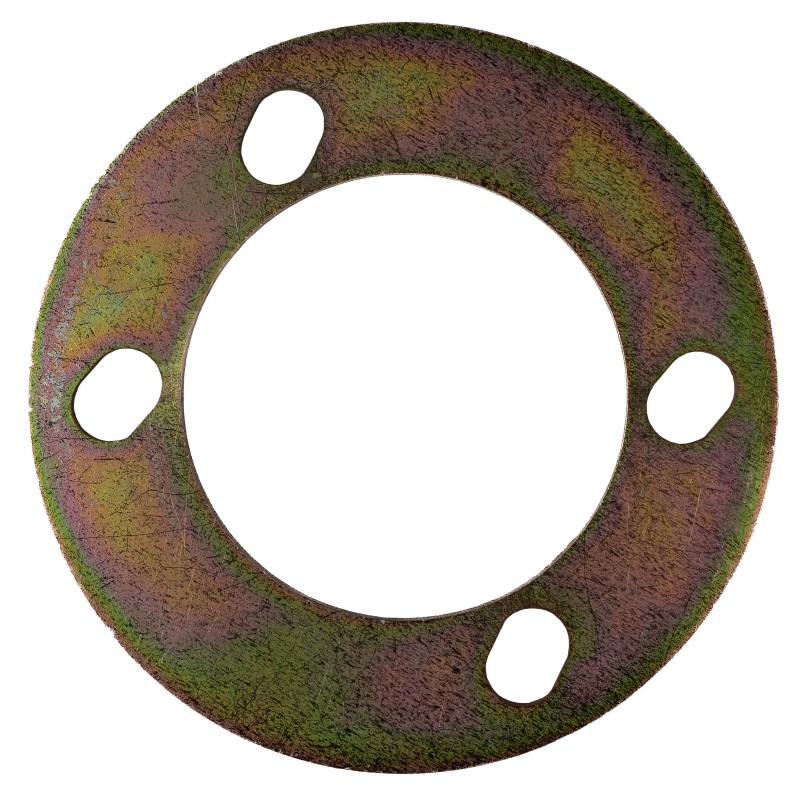

- Easy install bolt on brake caliper brackets and spacers to match varied axle offsets
- Fits both 5 x 4.5 inch (Ford) and 5 x 4.75 inch (Chev/HQ) stud patterns
- Complete with all mounting hardware, bolts, washers nuts.
Fits axle with maximum flange diameter of 6-1/4″ O.D.
Please Note: For 15 inch and larger wheel applications only.
Rotor Dimensions:
- Rotor hole I.D. : 2.78 inch
- Rotor back space: 2.30 inch

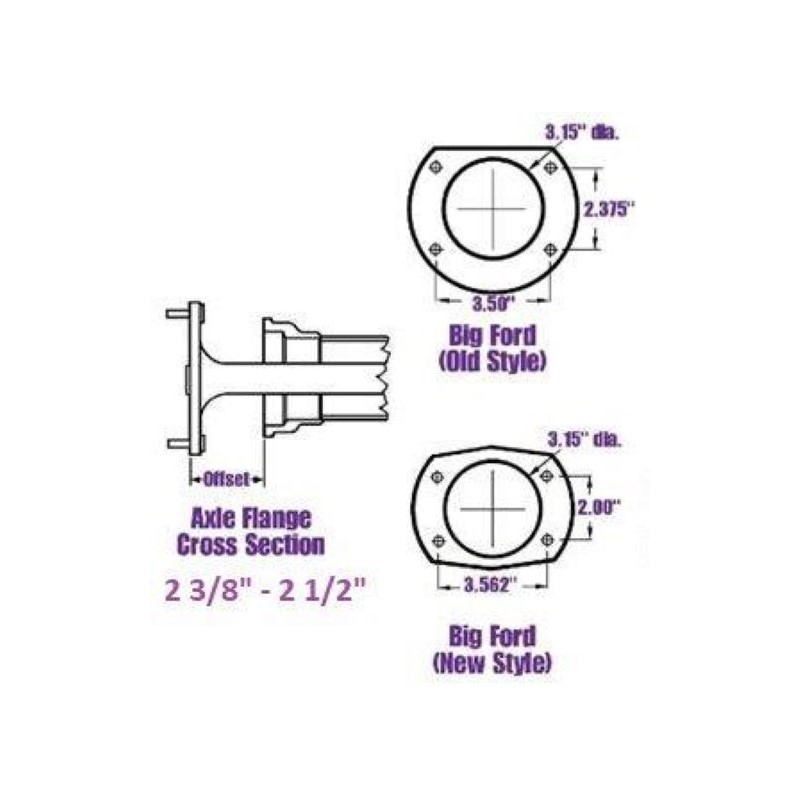

THIS KIT WILL ONLY FIT THE HOUSING END AND BRAKE GAP AS SHOWN.
ITEM IS EXCLUDED FROM FREE SHIPPING DUE TO WEIGHT – HEAVY ITEM.
