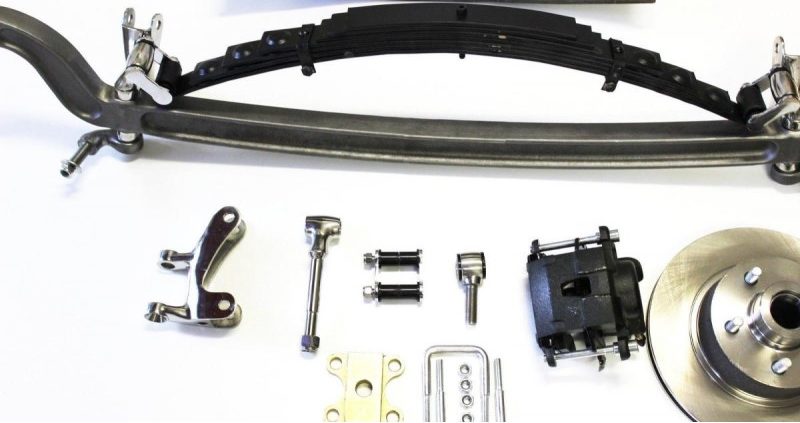

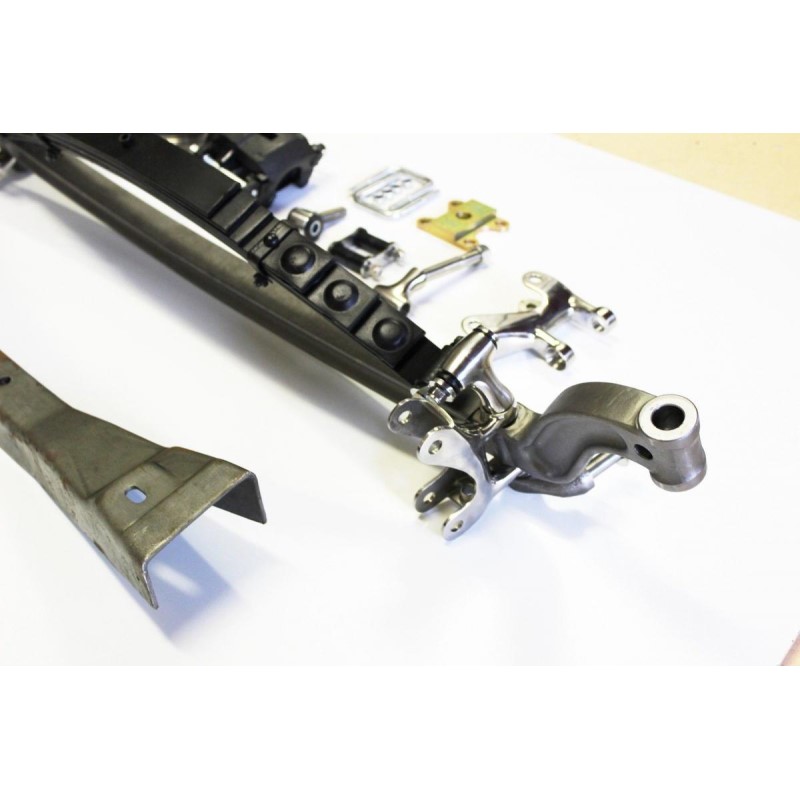

ARC Early Ford Hot Rod I-Beam Complete Front End.

Complete front end kit to install into your Hot Rod to suit Model A , 1932-34.

Everything is included from brakes, 4 bar radius rods, steering components, suspension, fasteners, axle.

All Engineered approved for Australia Wide use.

The wheel mounting face to wheel mounting face on these front ends is approx. 1440mm

Includes:

  • Choice of 4″ dropped 47″ forged steel drilled or solid axle
  • Polished stainless 4 bars w/ polished batwing brackets and mounting hardware, crush tube, bolts & 8 x 35mm RH thread rod end adjusters – we can make these 4 bars to size for you as well if required.
  • Stainless tie rod and drag link w/ 4 x polished 11/16 stainless tie rod ends (2x LH, 2x RH)
  • Stainless steering arms
  • Front disc brake kit with rotors (studs pressed), calipers, mounting brackets, bearings, seals, spindle nut kit, bolts, Ford (4.5″x 5) stud pattern
  • Front Panhard bar kit – stainless bar with bushed ring on the end & 35mm stainless rod end adjuster and weld together bracket kit
  • Pair of front chrome or black shocks
  • Lower shock mounts & nuts (plain)
  • Upper chassis shock brackets & bolts
  • Early Ford forged steel spindles w/ king pin kit
  • Polished stainless perch bolts
  • Front spring shackles
  • 29 inch front leaf spring
  • Front spring u-bolt kit
  • All fastening hardware to install (bolts will be with their respective parts)

Add On:

  • Vega steering box kit – including Vega box, pitman arm, mounting plate and universal joint (Vega to 3/4DD).

ITEM IS EXCLUDED FROM FREE SHIPPING DUE TO SIZE – HEAVY BULKY ITEM.
