Mini Kooler Integrated Air Conditioning Unit, Under Dash COMPLETE KIT.
Cool only unit Suit Hot Rod Or Custom Car.
COMPLETE KIT READY TO INSTALL!
Integrated unit which allows you to run vents in the dash and give a custom look.
American made by leading manufacturer Southern Rods.
Kit Includes:
- A/C evaporator unit with mounting brackets
- Control switch unit (upgrade to billet panel available)

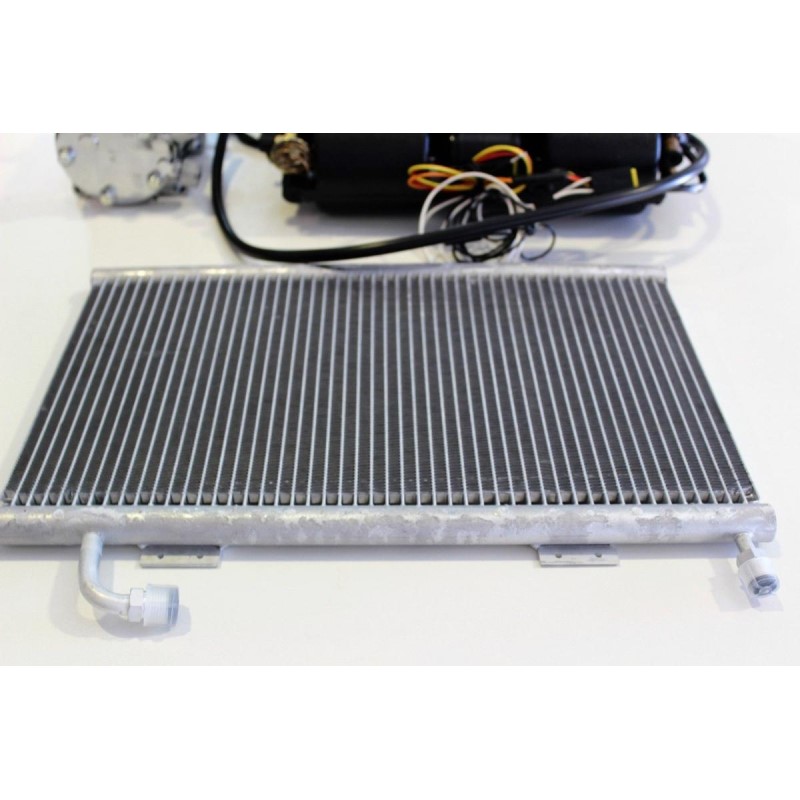

- Vertical or horizontal condenser (select when ordering)
- Flexible ducting hose to run to dash vents
- 3 vents for dash supplied (choose style when ordering)
- Chrome 508 Sanden style compressor with either v-belt or 7 rib serpentine pulley, or 7176 Small Body compressor (choose when ordering)
- All A/C lines and fittings included
- Electric water tap switch for heater
- Dryer and switches included
A/C COMPRESSOR ENGINE BRACKET IS NOT INCLUDED BUT AVAILABLE FOR FORD AND CHEV ENGINES.
PLEASE CLICK HERE TO SELECT APPROPRIATE BRACKET FOR YOUR ENGINE.
VERTICAL Condensor Dimensions:
- 500mm HIGH
- 325mm WIDE (380mm including fittings)
- 30mm DEEP
HORIZONTAL Condensor Dimensions:
- 500mm WIDE (540mm including fitting)
- 355mm HIGH
- 30mm DEEP
1 YEAR CONDITIONAL WARRANTY!!
PLEASE NOTE: COMPRESSOR CONTAINS ASSEMBLY OIL AND MUST BE DRAINED AND FILLED WITH THE PROPER AMOUNT OF R134a Pag OIL FOR YOUR APPLICATION. THE AIR CONDITIONING SYSTEM MUST ALSO BE PROPERLY FLUSHED AND CLEANED BEFORE COMPRESSOR INSTALLATION FOR WARRANTY PURPOSES.
